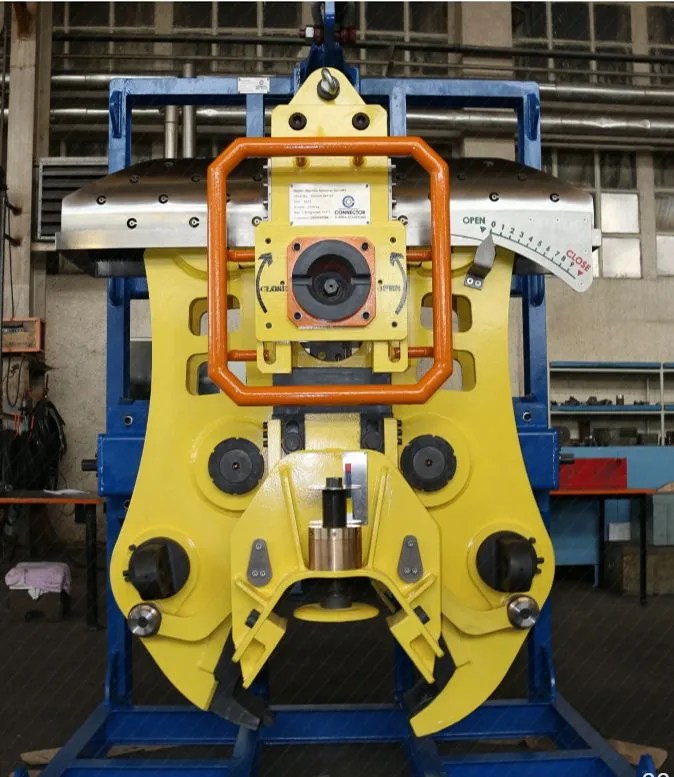

FLEXIBLE PIPELINE RETRIEVAL TOOLS
Pipeline retrieval tools using mechanically-operated jaws to recover flexible pipelines for subsea applications.
Incorporating unique features that ensure controlled lift through mitigation of the bending moment in the load.
FEATURES
- Reinforced jaws with interchangeable inserts allow the tool to be tailored to a range of pipeline sizes and materials
- Common Working Class ROV (WROV) interface for ease of operation
- Packed in a bespoke steel transport frame for high-level protection during transit
SPECIFICATIONS
- Suitable for pipeline sizes 3½ to 14″
- Lifting capacity 115 t
- Depth rating up to 3 000 mwd
- Interface with WROV via class 4 torque tool
Solution applications
Suitable for the recovery of the following for pipe laying and decommissioning operations:
- Flexibles
- Umbilicals
- Rigid pipelines
- Risers
