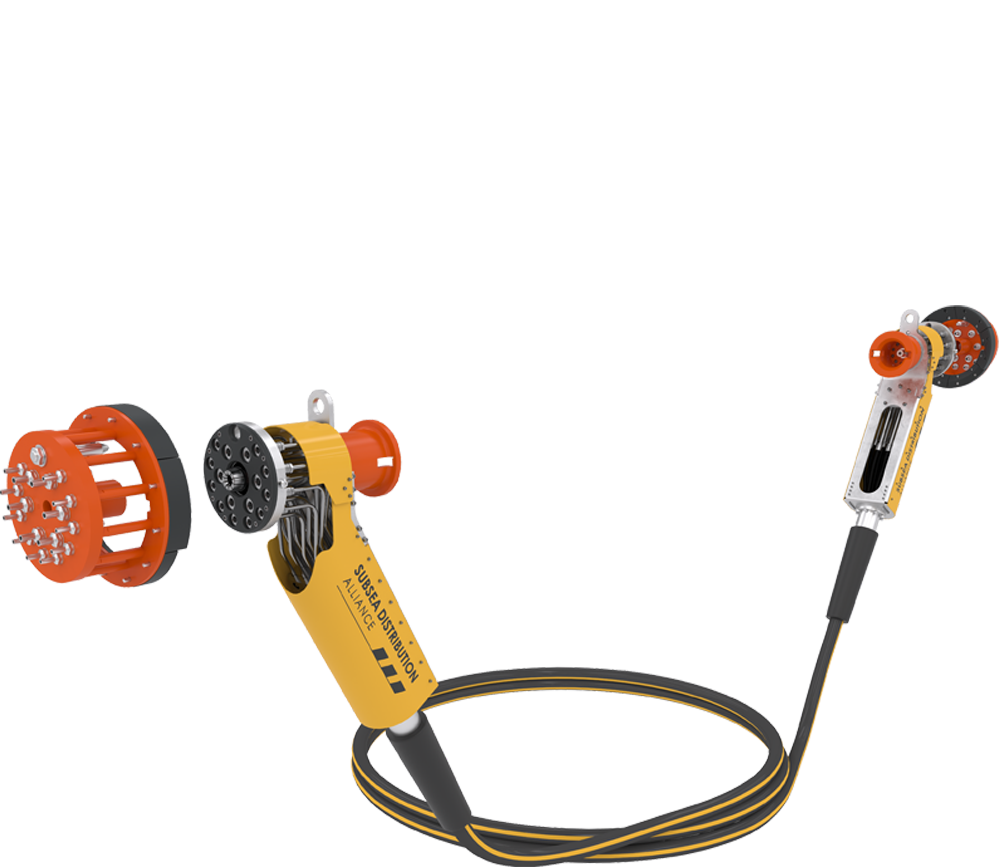

MQC STAB PLATES
Lightweight design with robust integral interface structure.
High misalignment tolerance during docking phase for ease of installation.
FEATURES
- Secondary release mechanism for emergency override
- Minimal weight for easy workshop/deck handling and installation
- Groundbreaking tube-routing innovation accommodates broad array of coupler configurations up to 1″
SPECIFICATIONS
- Working pressure: up to 15 000 psi
- Bore sizes: ¼ to 1″
- Operating temperature: -18 to +121 °C
- Maximum water depth: 3 030 m
- Design/qualification codes: API 6A (ISO 10423), API 17D (ISO 13628-4)
- Docking misalignment angle capacity: +/- 30 °
Solution applications
- Umbilical Termination Units
- Subsea Distribution Units
- Subsea Trees
- Subsea Manifolds
