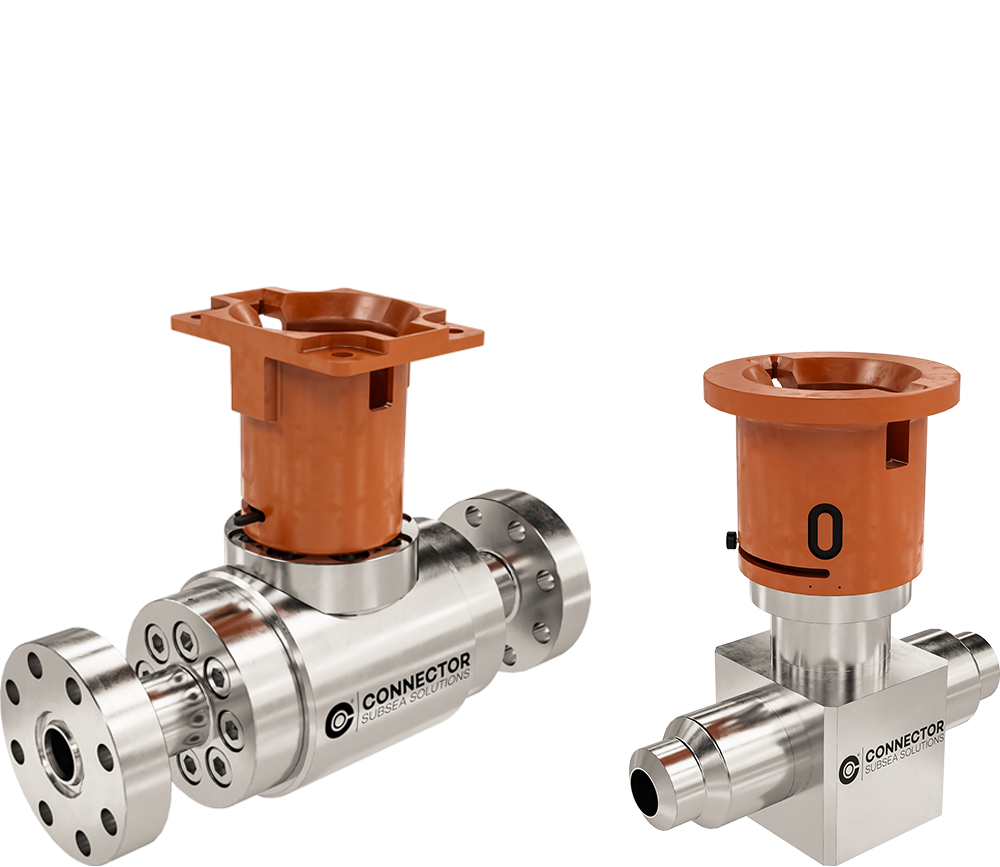

Market-leading lightweight and compact subsea valves, designed to reduce weight, and potential leak paths by 80%.

Reduced material usage minimises product weight in manufacturing and transportation, delivering soft seated ball valves with a lower carbon footprint.

FEATURES

• World’s first 2″ soft seated ball valves qualified to API 17D at 15 000 psi

• Certified zero leakage rate A (ISO 5208) for gas

• Unique manufacturing technology enables lightweight and compact products

• Modular design, easily customisable to suit client requirements

• Low complexity, validated high performance design

SPECIFICATIONS

• Working pressure: 5 000 to 15 000 psi

• Operating temperature: -18 to +121 °C

• Maximum water depth: 3 030 m

• Design/qualification codes: API 6A (ISO 10423), API 17D (ISO 13628-4)

• Product specification level: up to PSL 3G

• Zero leak rate A (ISO 5208)
